32mm Female Thread Tee Fast Joint HDPE Compression Fittings For Water Supplying

Name: 32mm Female Thread Tee Fast Joint HDPE Compression Fittings For Water Supplying
Brand: carterberg
Price: 1 USD

Brand Name : carterberg

Model Number : HDPE

Certification : IATF16949

Place of Origin : China

MOQ : Negotiation

Price : Negotiation

Payment Terms : L/C, D/A, D/P, T/T, Western Union

Supply Ability : 5000~20000 pc/month

Delivery Time : 7-20 work days

Packaging Details : carton

Connection : Welding

Specification : 20-110mm

Pressure : 1.6MPa SDR 11

Connection method : Thread Connecting

Application : Pipe Lines Connect

Color : Black,Blue

Surface : Smooth Surface

Temperature : -60℃~60℃

Contact Now

Application Water Supplying 32mm female thread tee fast joint HDPE Compression Fittings

The maximum working pressure is 16bar for diameters from 20-63mm and 10bar for diameters from 75-110mm in temperature of 20℃. The maximum working pressure is realted to the duration of pressure and temperature.

Product Name	HDPE PIPE FITTING
Color	Black, blue
Standard	GB/T13663-2000,ISO 4427-1:2007
Specification	20-110mm
Pressure	1.6MPa SDR 11
Main application	Water Supplying and Draining

32mm Female Thread Tee Fast Joint HDPE Compression Fittings For Water Supplying

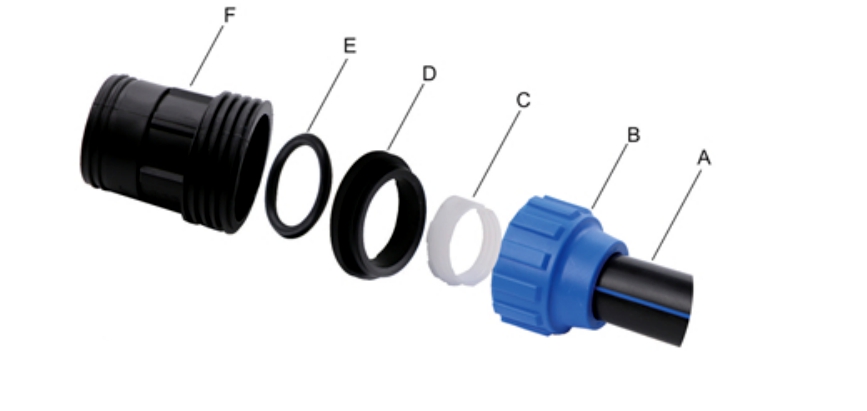

A. Pe tube

B. Nut, PP material with high stability to UV rays

C. Clinching ring, POM material of high mechnical resistance of hardness

D. Blocking bush, PE material

E. O ring gasket, acrylonitile rubber

F. Body, PP-B material

32mm Female Thread Tee Fast Joint HDPE Compression Fittings For Water Supplying

32mm Female Tee Joint

Water Supplying HDPE Compression Fittings

Thread HDPE Compression Fittings
